Case study · Commercial escape of water
Commercial Office Water Damage — Heating Pipe Failure Above Suspended Ceiling
prompt commercial response · Structural drying · Ceiling reinstatement
A pressurised heating pipe concealed above the suspended ceiling of a modern commercial office failed during business hours, saturating ceiling tiles, partition walls and commercial carpet. My HomeDry attended promptly to protect business continuity and completed a controlled drying and reinstatement programme.
Illustrative service example. Photographs, moisture readings, timings and material details for this project are held in the original site record. Precise figures are not published on the public website; a redacted evidence pack can be shared with a policyholder, insurer or loss adjuster on request.
Executive summary
My HomeDry received an emergency call from a commercial client after employees reported water dripping from the suspended ceiling during normal business hours. A pressurised heating pipe located within the ceiling void had failed, allowing heated system water to escape unnoticed above the suspended ceiling.
By the time the leak was isolated, a significant quantity of water had saturated ceiling tiles before entering the open-plan office below — affecting partition walls, commercial carpet tiles and several workstation areas. To minimise business interruption, My HomeDry attended the site promptly.
Emergency mitigation, moisture mapping and a commercial structural drying programme returned the office to normal operation with disruption kept to an absolute minimum.
Comparative moisture readings: a monitoring reading at initial survey, monitoring readings that reduced steadily before final documentation .
Ceiling collapse, saturated partitions and business continuity risk

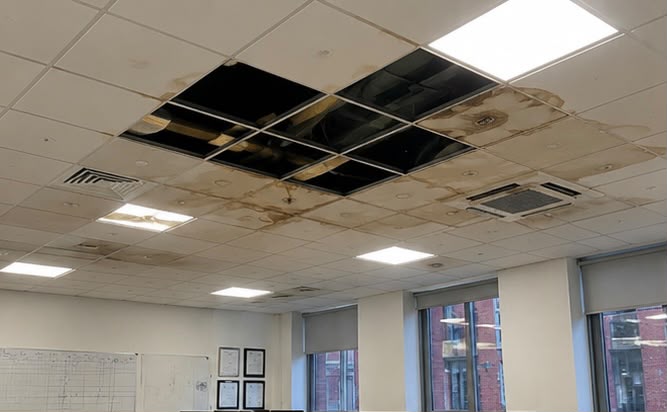

On arrival, the suspended ceiling showed extensive water staining with several ceiling tiles collapsing due to saturation. The damaged section exposed heating pipework, electrical containment and saturated ceiling insulation.
Because the office remained occupied, immediate mitigation was required to protect both staff safety and business continuity. Unaffected workstations were kept accessible throughout the emergency response.
- Significant ceiling collapse directly beneath the failed heating pipe
- Saturated suspended ceiling tiles across a wide area
- Water staining extending beyond the collapsed section
- Moisture migration into internal partition walls

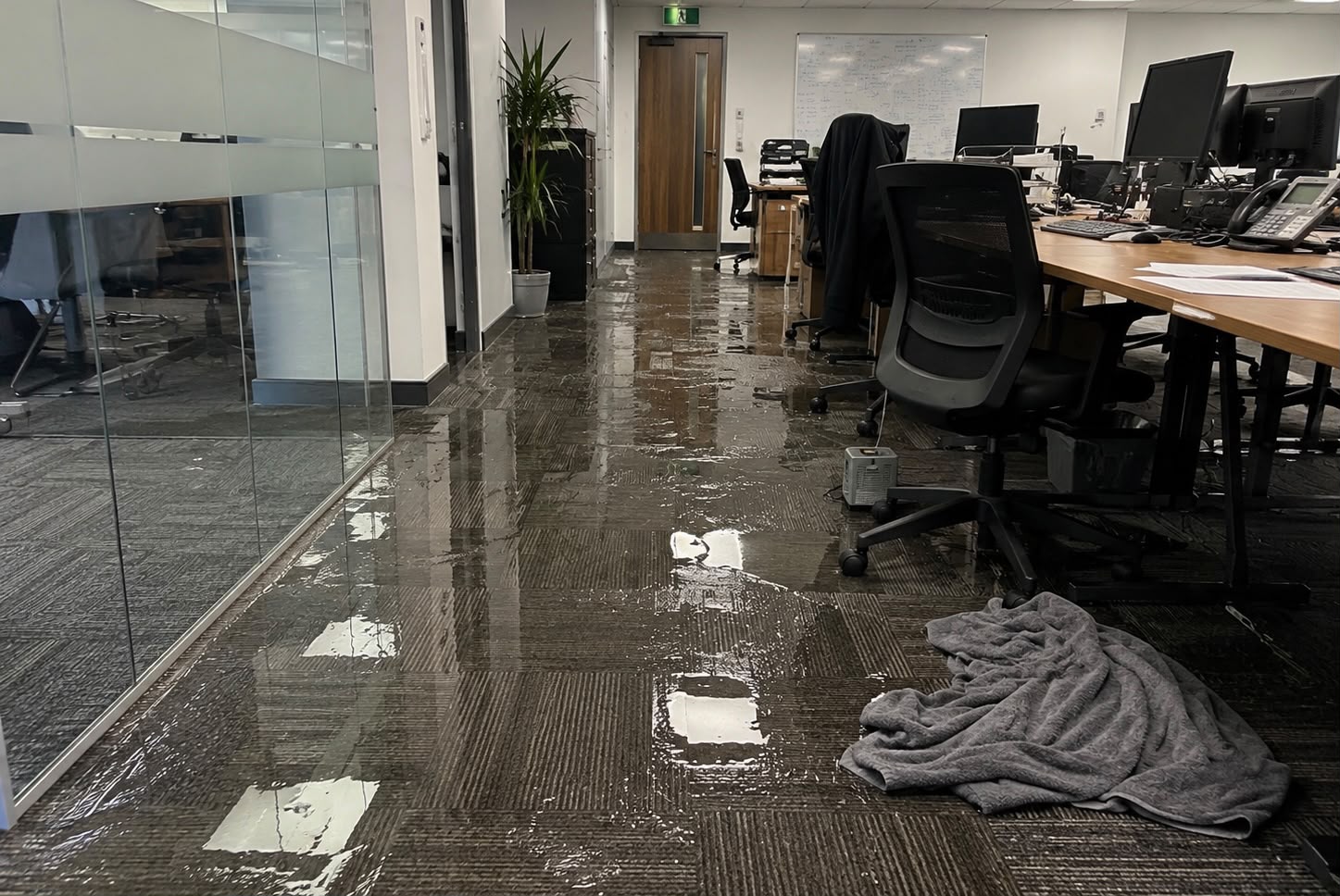

- Wet commercial carpet tiles
- Surface water surrounding workstation areas
- Dampness affecting perimeter walls
- No evidence of electrical fire damage
Following isolation of the heating system, damaged ceiling tiles and saturated insulation were carefully removed, computer equipment protected and standing water extracted from the carpeted areas.
Readings taken with a calibrated Protimeter Digital Mini
A comprehensive moisture survey was completed using a Protimeter Digital Mini, with monitoring locations across the internal partition wall, plasterboard beneath the leak, timber wall framing, an adjacent control wall and the suspended ceiling supports. Photographs and monitoring positions were recorded so identical readings could be repeated throughout the drying programme.

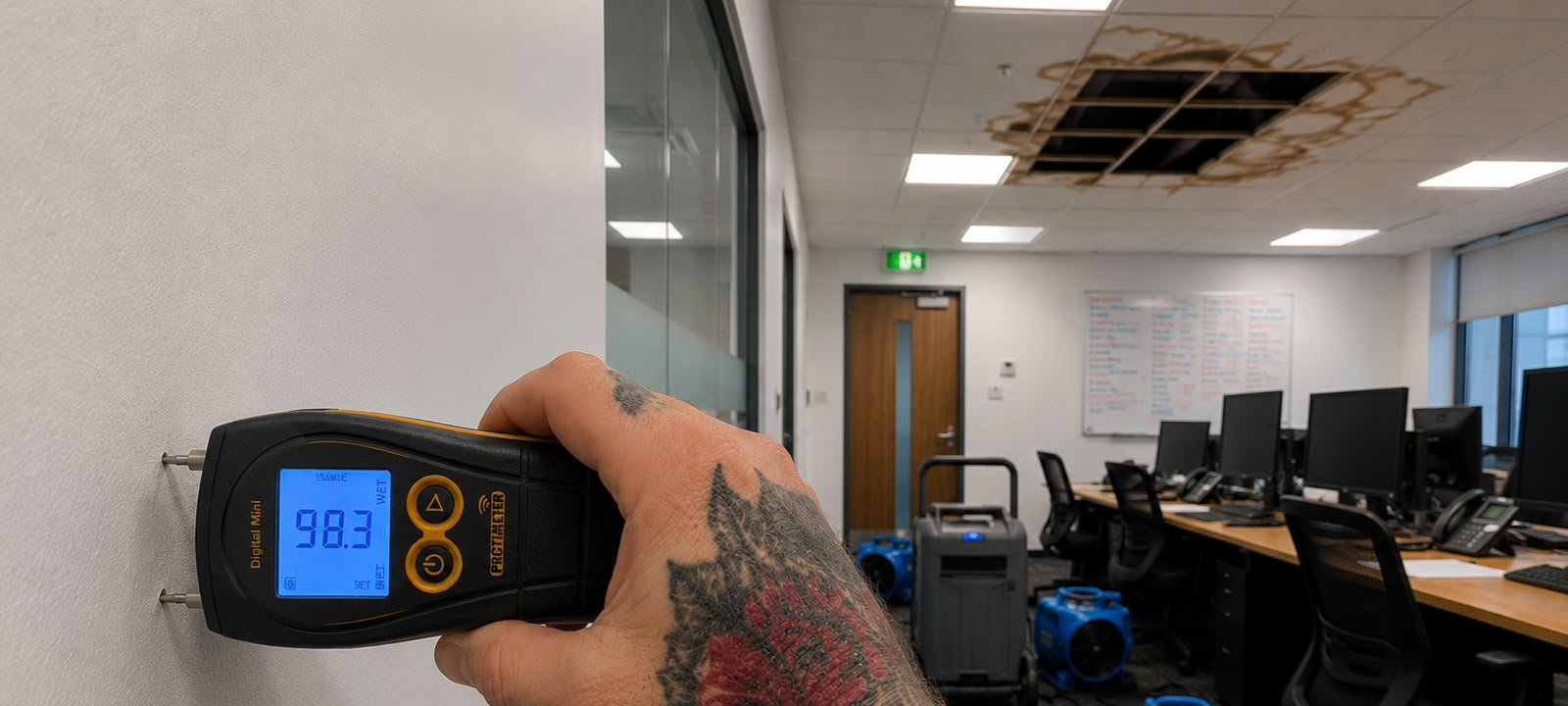

1Initial survey
Monitoring reading recorded
Significant moisture penetration confirmed within plasterboard and surrounding structural materials.

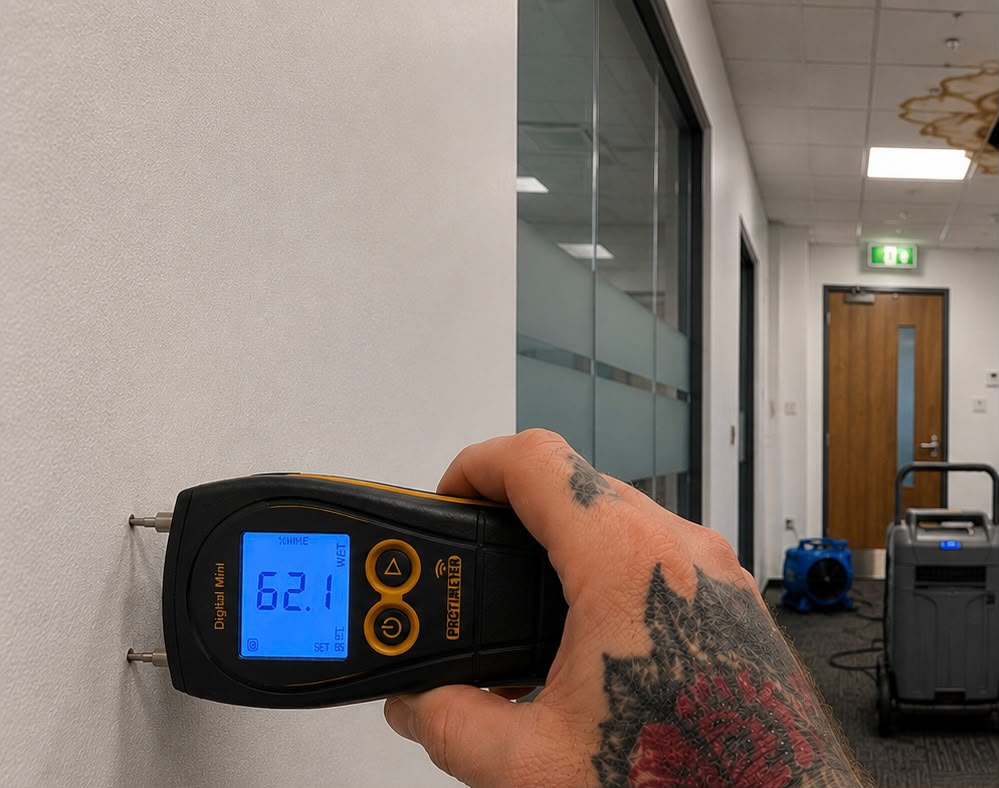

2Monitoring visit
Monitoring reading recorded
Substantial reduction confirmed drying programme progressing as expected.

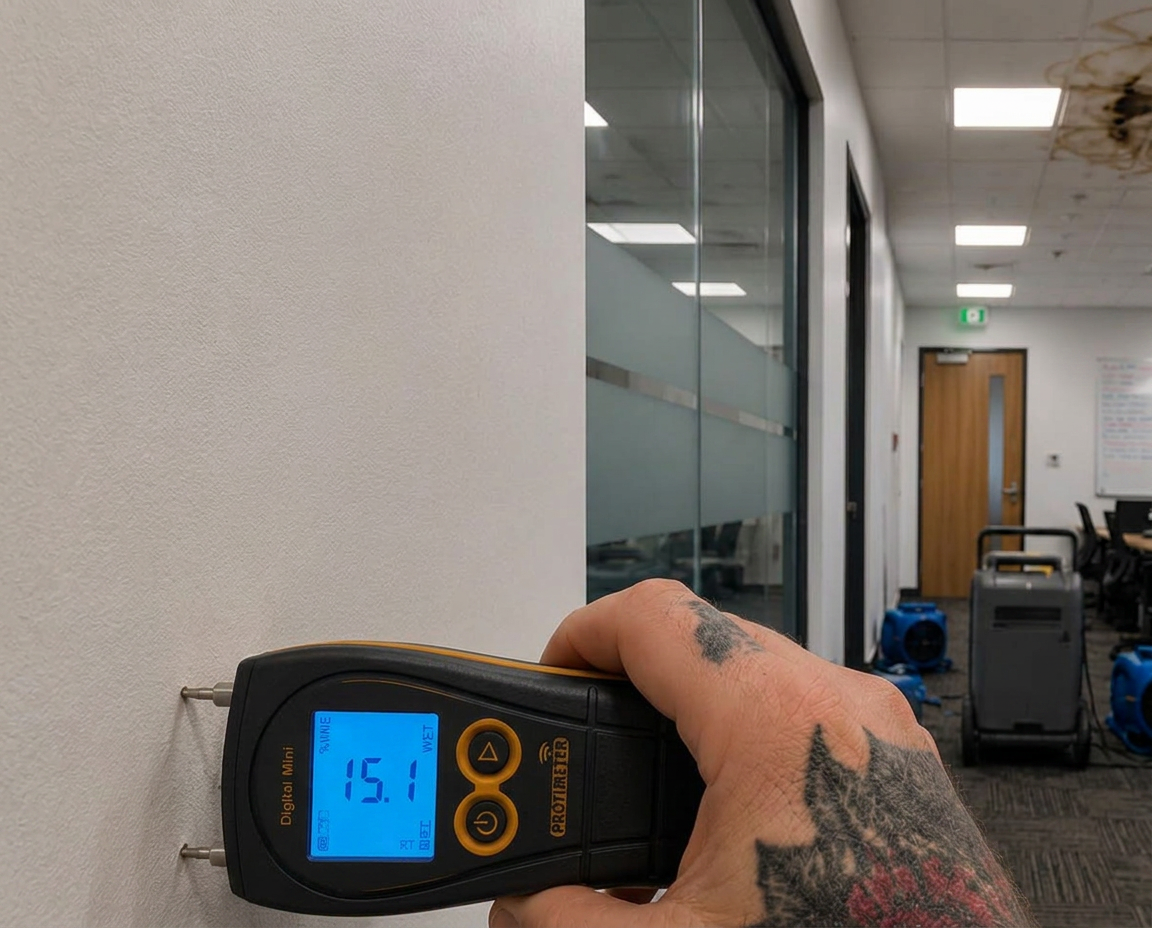

3Final verification
Monitoring reading recorded
Comparative reading recorded during monitoring. Precise figures held in the site record and available on request.
Illustrative service example
Comparative moisture readings were recorded at agreed monitoring points and reduced across the drying programme. Reinstatement proceeded after repeated readings supported the decision. Precise figures for this project are held in the site record and can be shared with the policyholder, insurer or loss adjuster on request.
Commercial dehumidification and targeted air movement
Following extraction and moisture mapping, a commercial structural drying programme was installed. The dehumidifier was positioned centrally within the affected office to maximise moisture extraction, while air movers were positioned to circulate air beneath desks, across the carpet tiles and towards the affected wall and ceiling area.
Equipment remained operational continuously throughout the project, with daily monitoring confirming stable environmental conditions, efficient equipment operation and steady reductions in moisture.
Centrally positioned for maximum moisture extraction across the open-plan office.
Directed airflow beneath desks, across carpet tiles and along partition walls.
Rapid removal of standing water from carpeted areas.
Repeat moisture readings from recorded monitoring positions.
Environmental conditions were maintained within the optimum drying range throughout the project, with no evidence of secondary water ingress recorded during monitoring visits.
Ceiling reinstatement and return to normal operation
Following successful drying verification, reinstatement commenced. Because drying had been commenced rapidly, structural replacement was limited to damaged ceiling finishes only.
The suspended ceiling was reinstated, insulation replaced, minor wall decoration completed and workstation areas cleaned before the office was returned to normal operation. Business disruption was kept to an absolute minimum due to the rapid emergency response.
- Replacement of damaged suspended ceiling tiles
- Inspection and reinstatement of ceiling grid
- Replacement of removed insulation
- Minor wall decoration
- Cleaning of workstation areas
- Commercial carpet cleaning
- Final detailing throughout the office
- Heating pipe repair coordinated with mechanical contractor
A final inspection confirmed the suspended ceiling fully reinstated, partition walls dried, carpet clean and dry, and no elevated moisture readings remaining anywhere within the affected area.
Rapid commercial response minimised business interruption
This project demonstrates the significant disruption that can result from the failure of a heating system pipe concealed within a suspended ceiling. Although the source of the leak was hidden above the office ceiling, prolonged water escape saturated ceiling tiles, affected partition walls and allowed moisture to migrate into commercial carpet and surrounding building fabric.
Following emergency attendance, My HomeDry carried out immediate mitigation, moisture mapping and installed a controlled structural drying programme using commercial dehumidification and targeted air movement. Moisture monitoring showed a consistent reduction from an initial reading of a monitoring reading, to a monitoring reading during the monitoring visit, before reaching a final verification reading of a monitoring reading.
Once drying was verified, damaged ceiling tiles and insulation were replaced, the ceiling reinstated and the office returned to its pre-loss condition. Thanks to the rapid response and carefully managed drying programme, business interruption was minimised and the client was able to resume full operations with confidence.
