Escape of Water Restoration — Residential Bedroom
Complete Structural Drying & Reinstatement Project
My HomeDry was contacted by the homeowner following a concealed escape of water that affected a first-floor bedroom. A full inspection, structural drying programme and complete reinstatement returned the room to its pre-loss condition.
Illustrative service example. Photographs, moisture readings, timings and material details for this project are held in the original site record. Precise figures are not published on the public website; a redacted evidence pack can be shared with a policyholder, insurer or loss adjuster on request.
Executive summary
When a concealed escape of water affected this first-floor bedroom, the homeowner contacted My HomeDry to carry out a full inspection, structural drying programme and complete reinstatement of the affected area.
Although the leak had already been isolated prior to our attendance, significant moisture remained trapped within the ceiling construction and surrounding building materials. Left untreated, this hidden moisture could have resulted in ongoing deterioration, mould growth and further damage long after the visible leak had been repaired.
Our surveyors completed a detailed moisture assessment before designing a bespoke drying programme using professional restoration equipment. Over a series of monitoring visits, moisture levels reduced steadily until the property returned to a comparative dry benchmark used for that build-up. Once drying was complete, full reinstatement works were undertaken, restoring the bedroom to its original condition.
This case study demonstrates the complete restoration journey — from the initial damage through to the finished room.
Widespread staining and hidden saturation
Our technician attended the property shortly after notification of the escape of water to complete a comprehensive visual inspection and moisture survey.

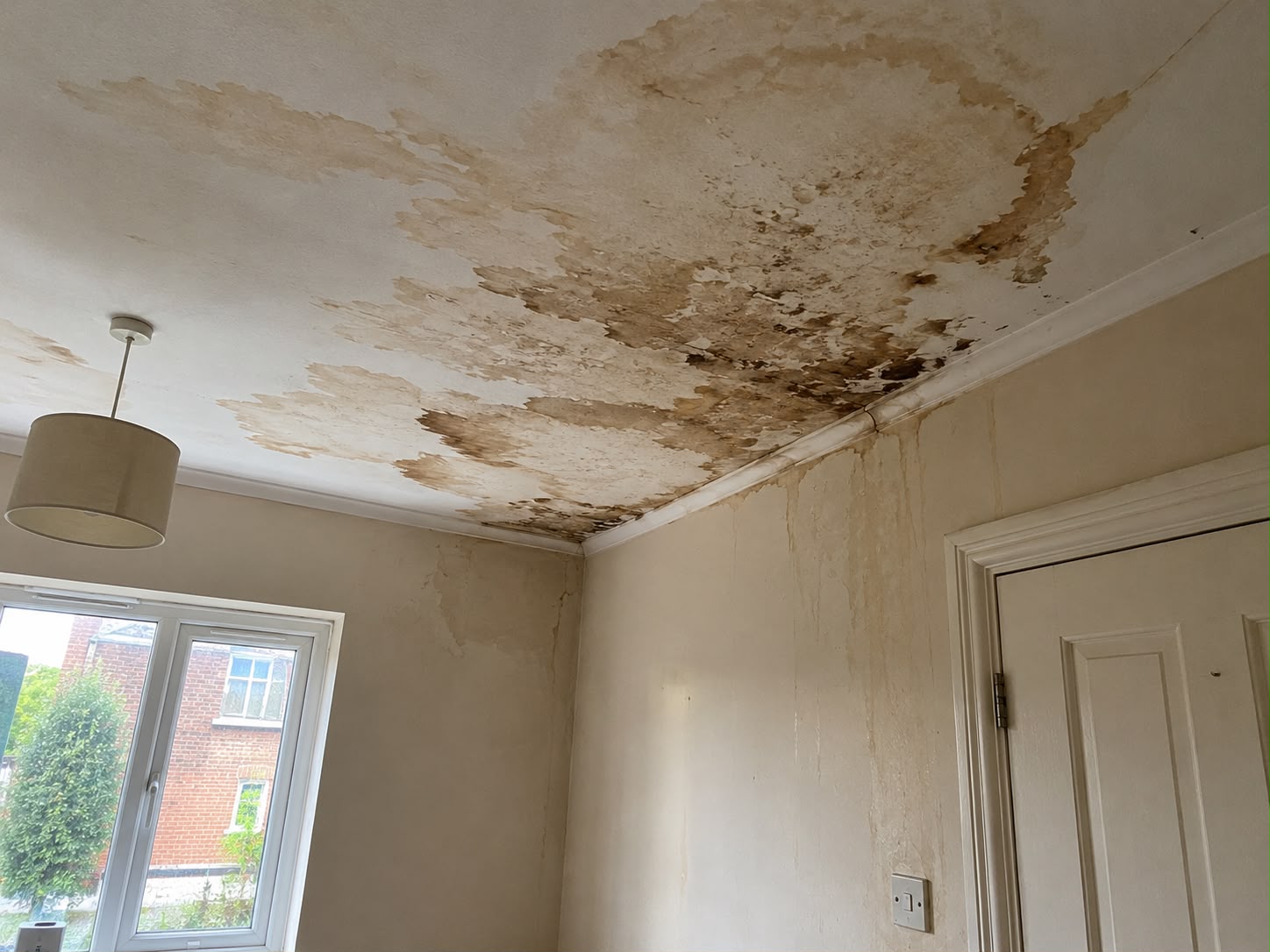

Immediately upon entering the room, widespread staining was evident across the ceiling, with moisture tracking extending beyond the apparent source of the leak. Brown discolouration, decorative staining and moisture migration indicated that water had travelled through the plasterboard ceiling before spreading laterally across surrounding finishes.
Whilst the visible damage alone was significant, experience shows that moisture often extends well beyond what can be seen by the naked eye. For this reason, every affected surface was carefully assessed to establish the true extent of saturation before any drying equipment was installed.
Although the leak itself had already been repaired, the building fabric remained heavily saturated. Moisture retained within plasterboard, timber and decorative finishes can remain trapped for many weeks if left untreated, often leading to mould growth, unpleasant odours and unnecessary replacement of otherwise salvageable materials.
- Widespread ceiling staining
- Brown discolouration and decorative damage
- Lateral moisture migration
- Saturation across plasterboard construction
- Elevated risk of mould growth if left untreated
- Damage to surrounding decorations
Following completion of the inspection, My HomeDry recommended immediate structural drying to minimise secondary damage and restore the property safely.

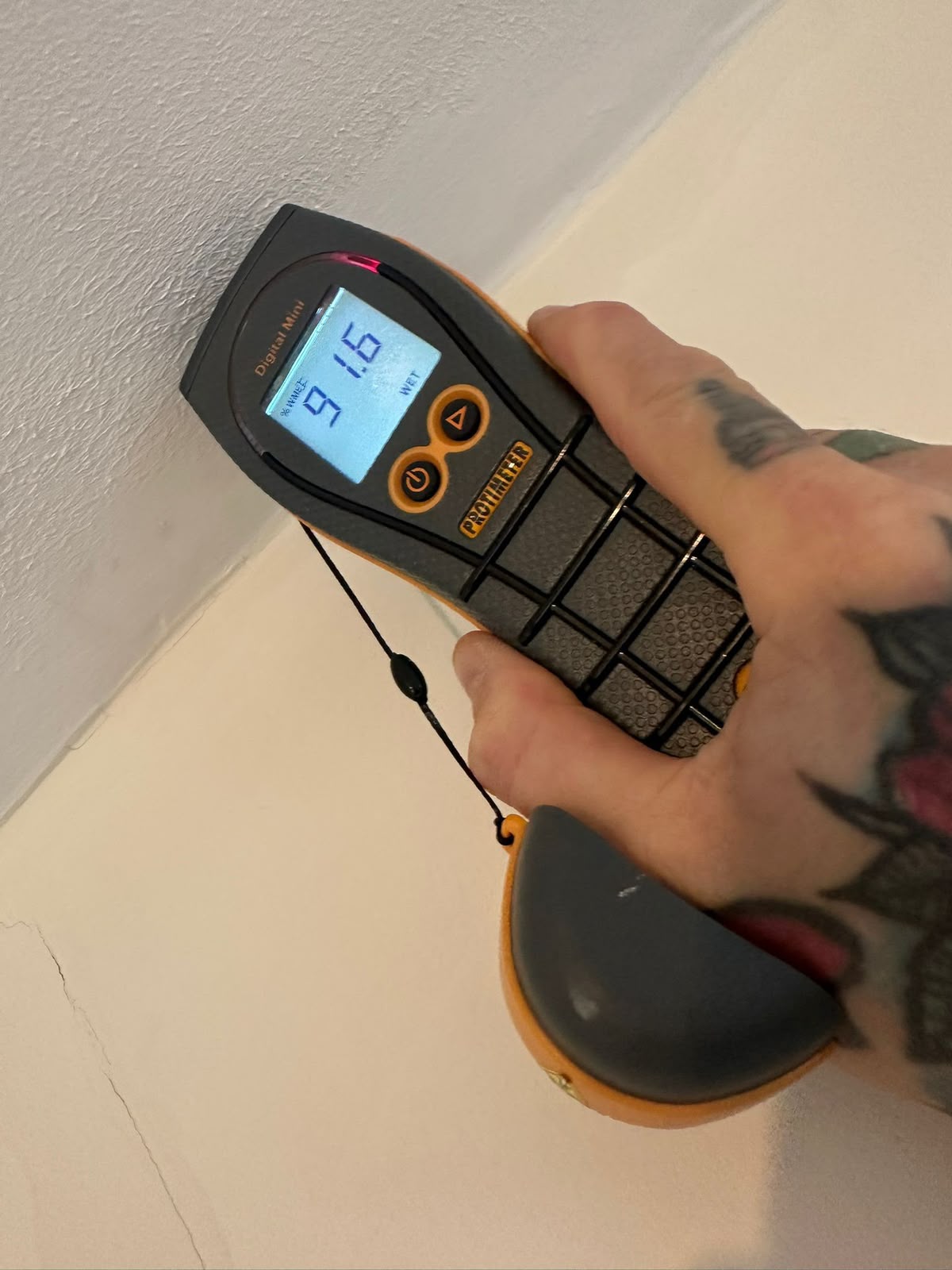

Readings taken with a calibrated Protimeter Digital Mini
During the initial inspection, a Protimeter Digital Mini moisture meter recorded severe saturation within the plasterboard construction. Repeat testing during scheduled monitoring visits demonstrated a consistent downward trend as moisture was extracted from the affected building materials.
1Initial inspection
Monitoring reading recorded
Severe saturation at the affected bedroom ceiling — immediate mechanical drying required.

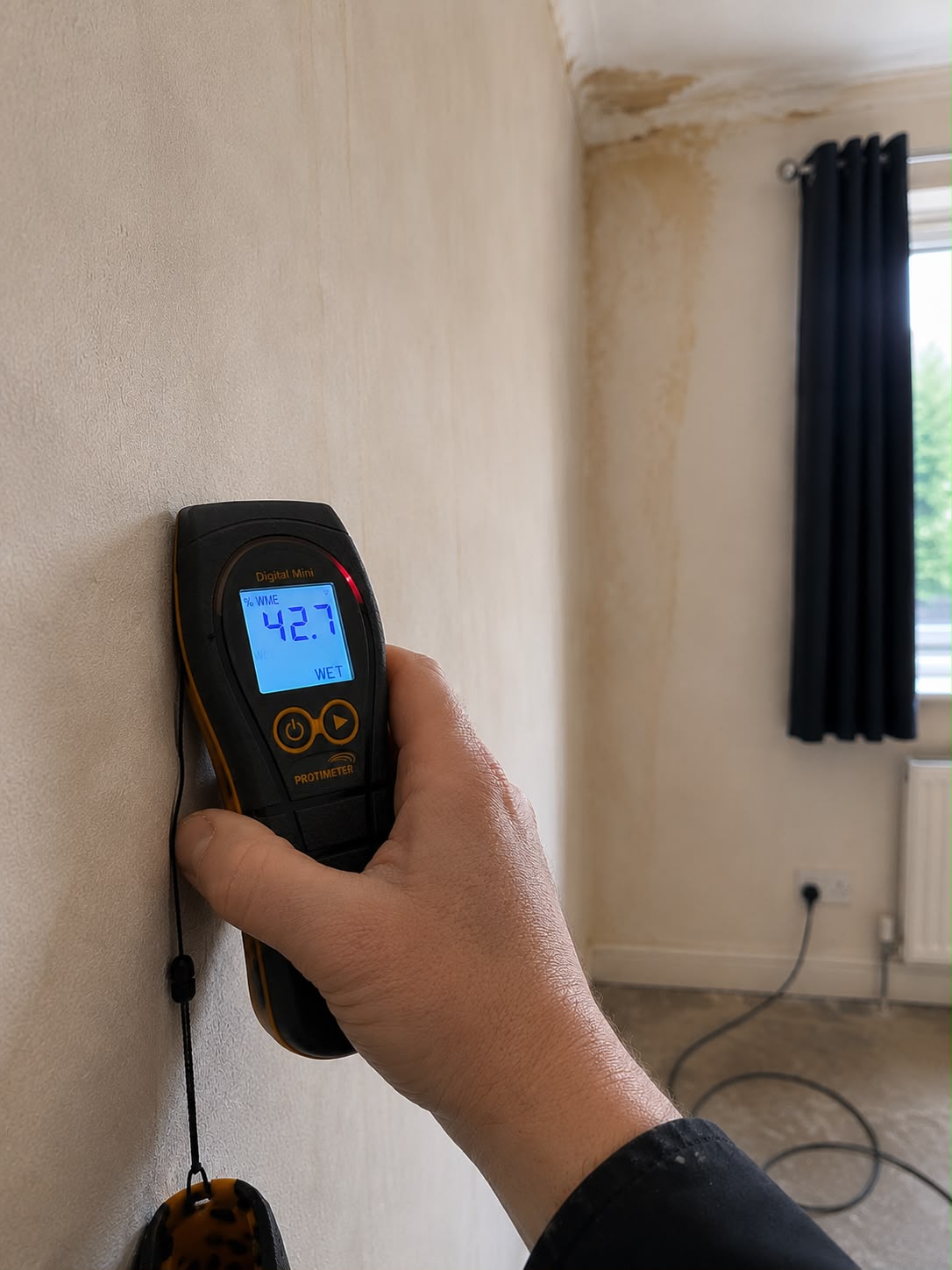

2Monitoring visit
Monitoring reading recorded
Significant reduction confirmed — drying strategy performing as intended.

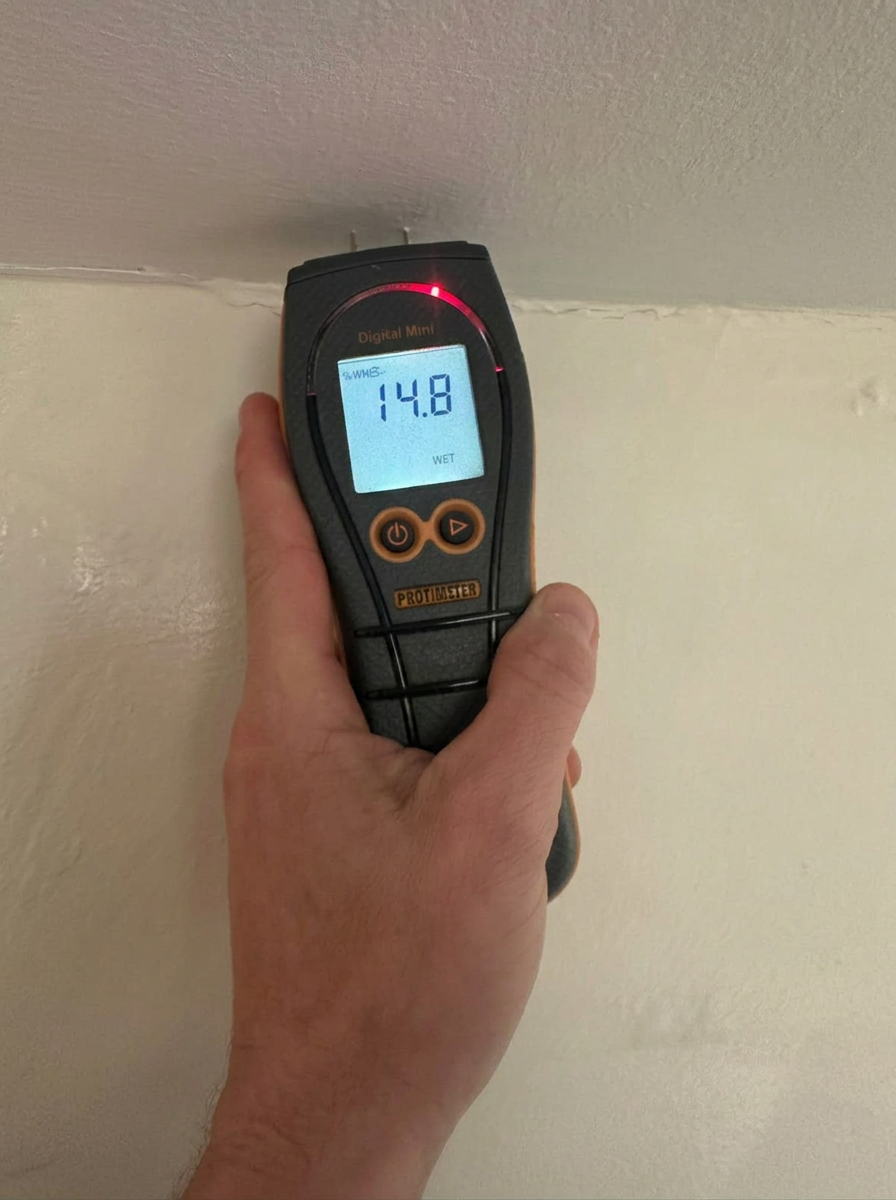

3Final verification
Monitoring reading recorded
Comparative reading recorded during monitoring. Precise figures held in the site record and available on request.
Illustrative service example
Comparative moisture readings were recorded at agreed monitoring points and reduced across the drying programme. Reinstatement proceeded after repeated readings supported the decision. Precise figures for this project are held in the site record and can be shared with the policyholder, insurer or loss adjuster on request.
A controlled programme designed around the room
Following completion of the initial survey, a controlled structural drying programme was designed specifically for the property. Rather than simply placing drying equipment into the room, each piece of equipment was positioned strategically to maximise airflow across the affected ceiling whilst simultaneously extracting moisture from the surrounding air.

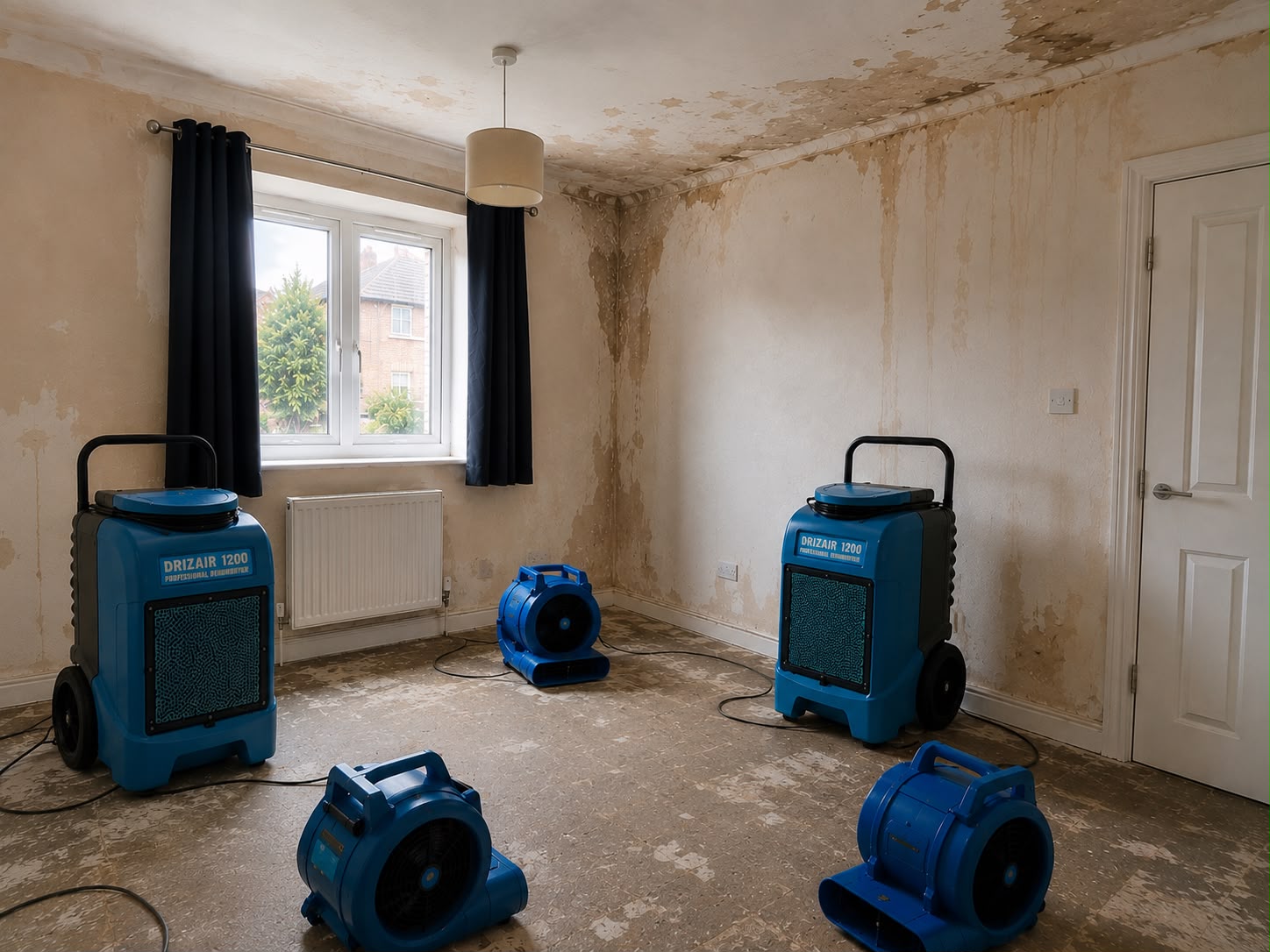

Two professional DrizAir dehumidifiers were installed to continuously remove moisture from the environment. As moisture evaporated from the saturated building materials, the dehumidifiers captured and removed it, preventing it from simply redistributing elsewhere within the property.
Three high-performance air movers were then positioned to create consistent airflow across the affected surfaces. Increasing air velocity dramatically accelerates evaporation, allowing moisture trapped within plasterboard and decorative finishes to migrate safely into the surrounding air where it can be removed by the dehumidifiers.
Continuous moisture extraction from the surrounding air.
Accelerated evaporation across the affected ceiling and walls.
Calibrated moisture readings across all affected areas.
Equipment positioning kept under continual review throughout drying.
Throughout the drying programme, equipment positioning remained under continual review to ensure even drying whilst maintaining safe access for the homeowner.
Full reinstatement to pre-loss condition
Before any reinstatement work commenced, a final verification survey was undertaken across all previously affected areas. The highest moisture reading had reduced to the comparative dry benchmark used for that build-up, indicating that the ceiling and surrounding building materials had returned to an acceptable moisture content suitable for reinstatement.
With drying successfully completed, all equipment was removed from site and the reinstatement phase commenced. Damaged decorative finishes were carefully prepared before repairs were undertaken to the affected surfaces. Once all repairs had been completed, the ceiling and walls were professionally redecorated to restore the room to its pre-loss condition.
The completed result demonstrates not only the effectiveness of the structural drying programme but also the importance of ensuring that reinstatement is carried out only once acceptable moisture levels have been achieved.
- Final verification moisture survey
- Removal of drying equipment
- Preparation of damaged decorative finishes
- Ceiling and wall repairs
- Full skim where required
- Mist coating
- Professional redecoration
- Final quality inspection
The room was returned to the homeowner clean, dry and fully restored, with no visible evidence of the original escape of water.
Every stage managed by one team
Every escape of water is different, but the principles remain the same: identify the extent of the damage, accurately measure moisture levels, implement a controlled drying programme and verify that the building has fully dried before reinstatement begins.
On this project, My HomeDry successfully managed every stage of the restoration process — from the initial inspection through to structural drying, moisture monitoring and final decoration.
From emergency response through to the final coat of paint, we manage the complete restoration journey, giving our customers confidence that their home is in safe hands.
