Escape of Water Restoration — Large Country Residence
Complete Structural Drying & Reinstatement Project
My HomeDry was instructed to attend a substantial detached country residence following the discovery of a long-term concealed escape of water within the ceiling void above the principal living room.
Illustrative service example. Photographs, moisture readings, timings and material details for this project are held in the original site record. Precise figures are not published on the public website; a redacted evidence pack can be shared with a policyholder, insurer or loss adjuster on request.
Executive summary
Unlike a sudden pipe burst, this loss had developed gradually over several weeks. The slow, continuous leak had remained undetected due to its location above the ceiling until extensive staining and water ingress became visible. By the time the homeowner discovered the issue, significant moisture had migrated through the plasterboard ceiling and into the adjoining walls.
Following an immediate inspection, our technicians carried out a full moisture assessment before designing and implementing a bespoke structural drying programme. Commercial drying equipment remained in operation until moisture readings confirmed that the building fabric had returned to a comparative dry benchmark used for that build-up, allowing reinstatement works to commence safely.
The project was successfully completed with the room fully restored to its pre-loss condition.

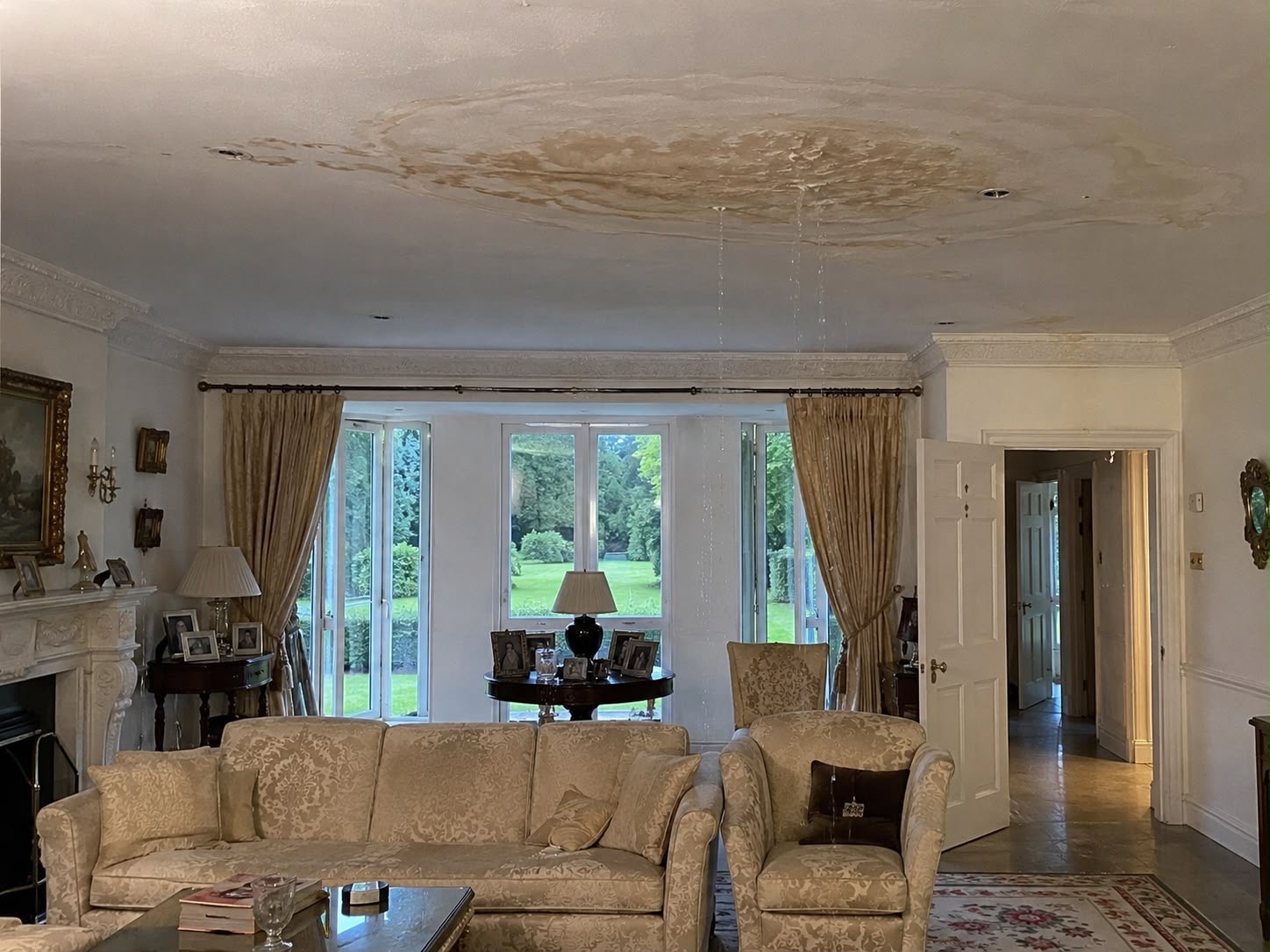

Extensive damage from a slow, concealed leak
Upon arrival, the source of the escape of water had only recently been identified. Although the leak itself had been isolated, moisture had already travelled extensively through the ceiling construction due to the prolonged nature of the leak.
The living room displayed substantial staining across the centre of the ceiling with active water penetration still evident. Water had followed the natural path of least resistance before migrating laterally across the ceiling void and down adjoining wall junctions. The homeowner reported that the staining had become progressively worse over several weeks before water eventually began dripping into the room.
- Extensive decorative staining
- Active moisture migration
- Ceiling saturation
- Water tracking into adjoining walls
- Localised plaster deterioration
- Elevated humidity throughout the room
Despite the dramatic visible damage, experience indicated that hidden moisture was likely to extend significantly beyond the stained areas. A full moisture survey was therefore undertaken before any drying strategy was implemented.
Readings taken with a calibrated Protimeter Digital Mini
Multiple readings were taken throughout the affected ceiling and adjoining wall junctions. Each subsequent visit confirmed a consistent downward trend — evidence that moisture was being removed safely from the building fabric.

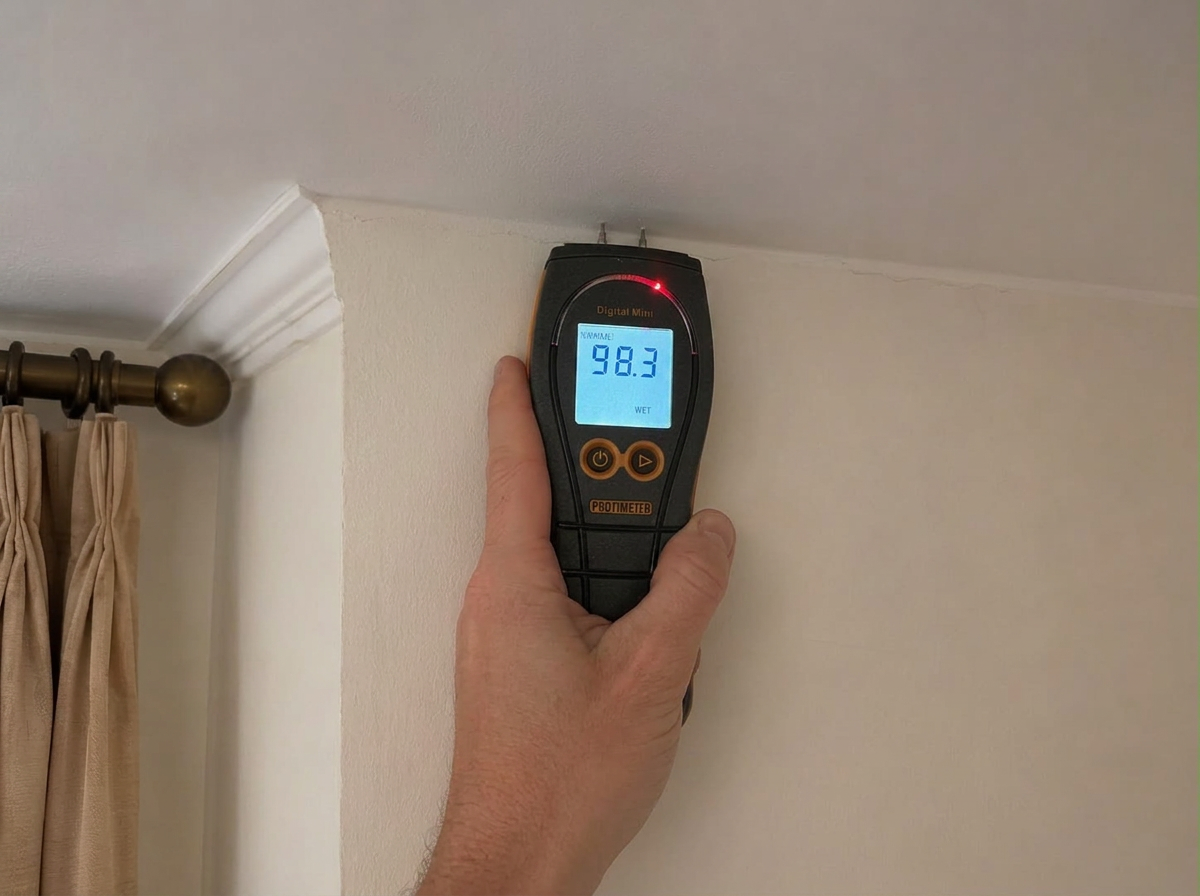

1Initial inspection
Monitoring reading recorded
Severe saturation at the upper wall directly beneath the leak.

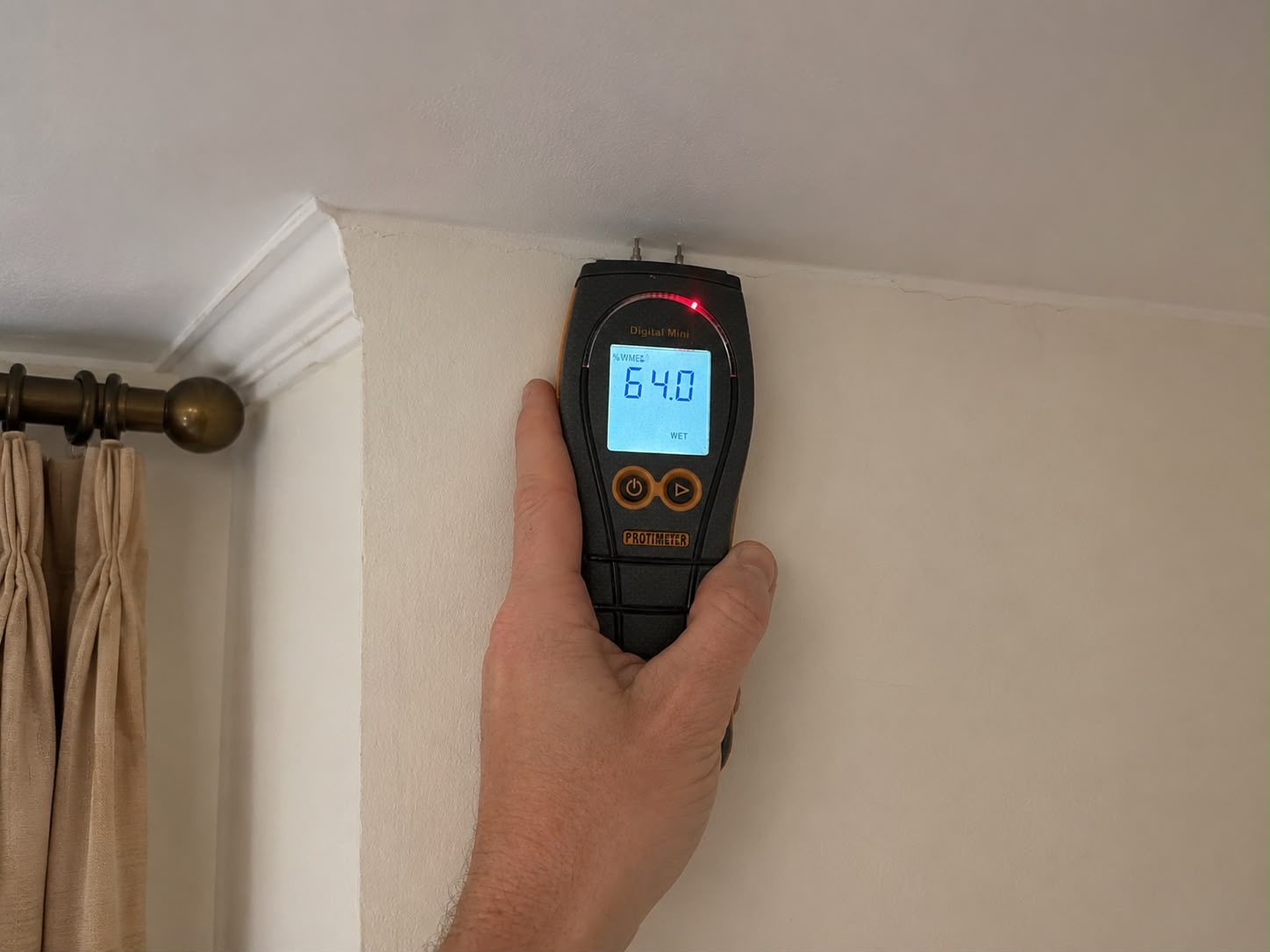

2Monitoring visit 1
Monitoring reading recorded
Free moisture being removed from the building fabric; downward trend confirmed.

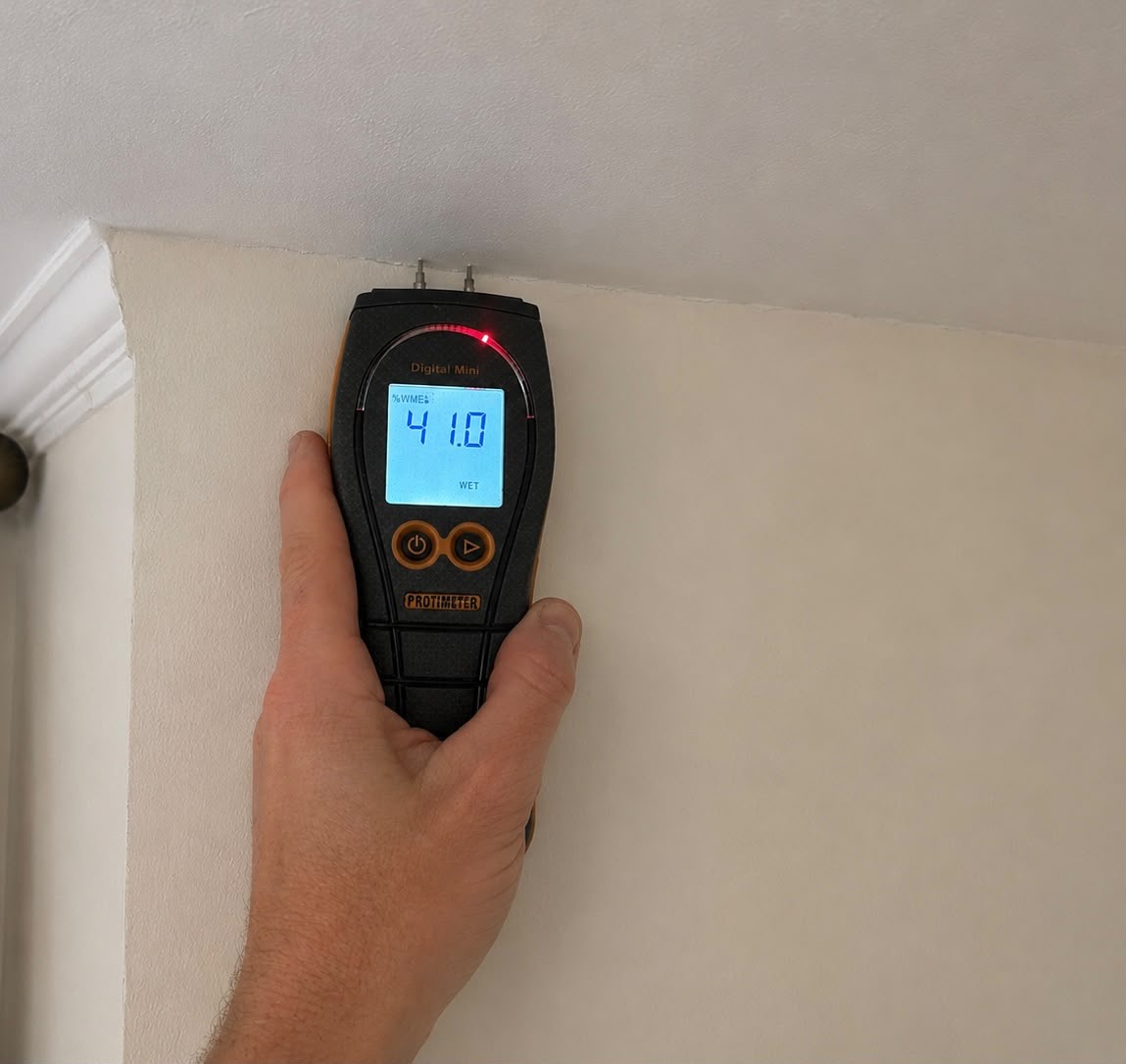

3Monitoring visit 2
Monitoring reading recorded
Majority of free water removed from the plasterboard ceiling.

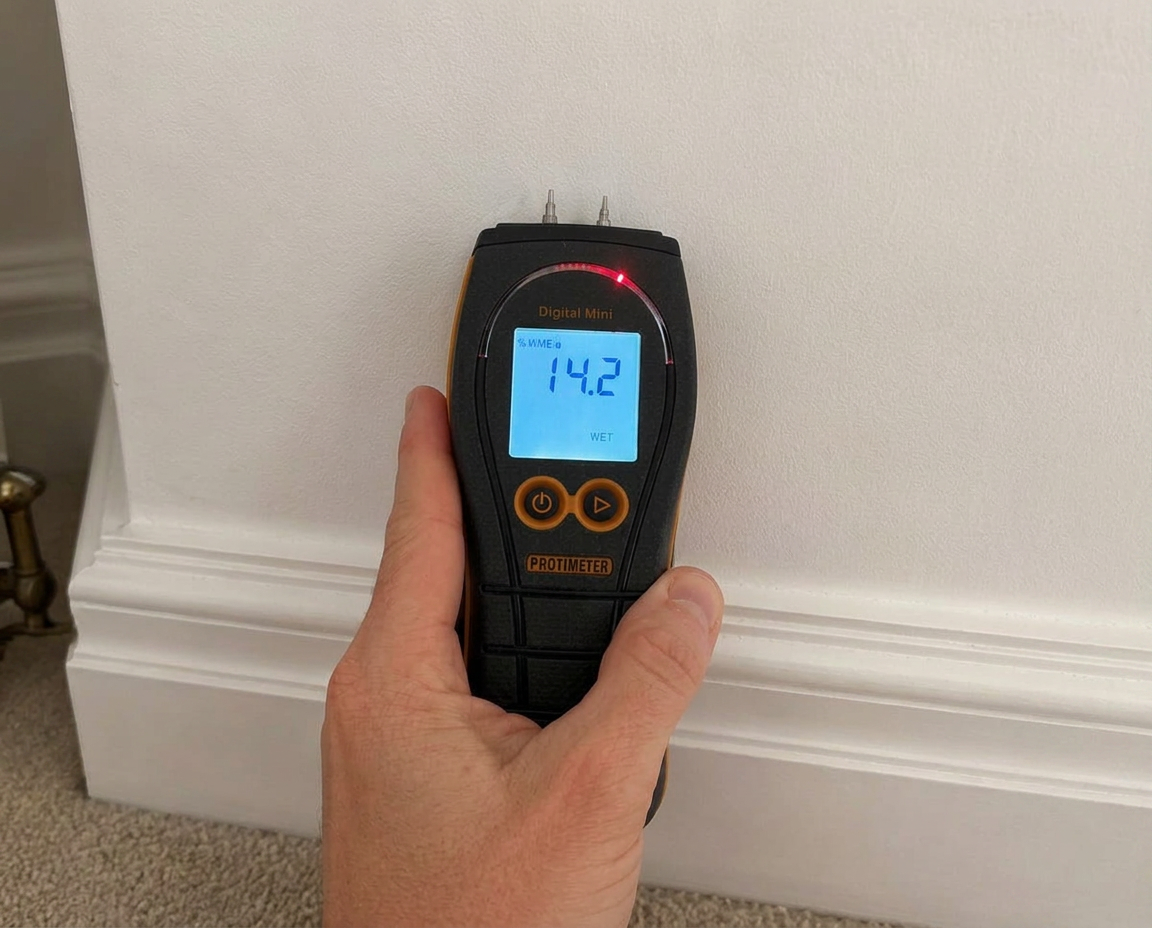

4Final verification
Monitoring reading recorded
Comparative reading recorded during monitoring. Precise figures held in the site record and available on request.
Illustrative service example
Comparative moisture readings were recorded at agreed monitoring points and reduced across the drying programme. Reinstatement proceeded after repeated readings supported the decision. Precise figures for this project are held in the site record and can be shared with the policyholder, insurer or loss adjuster on request.

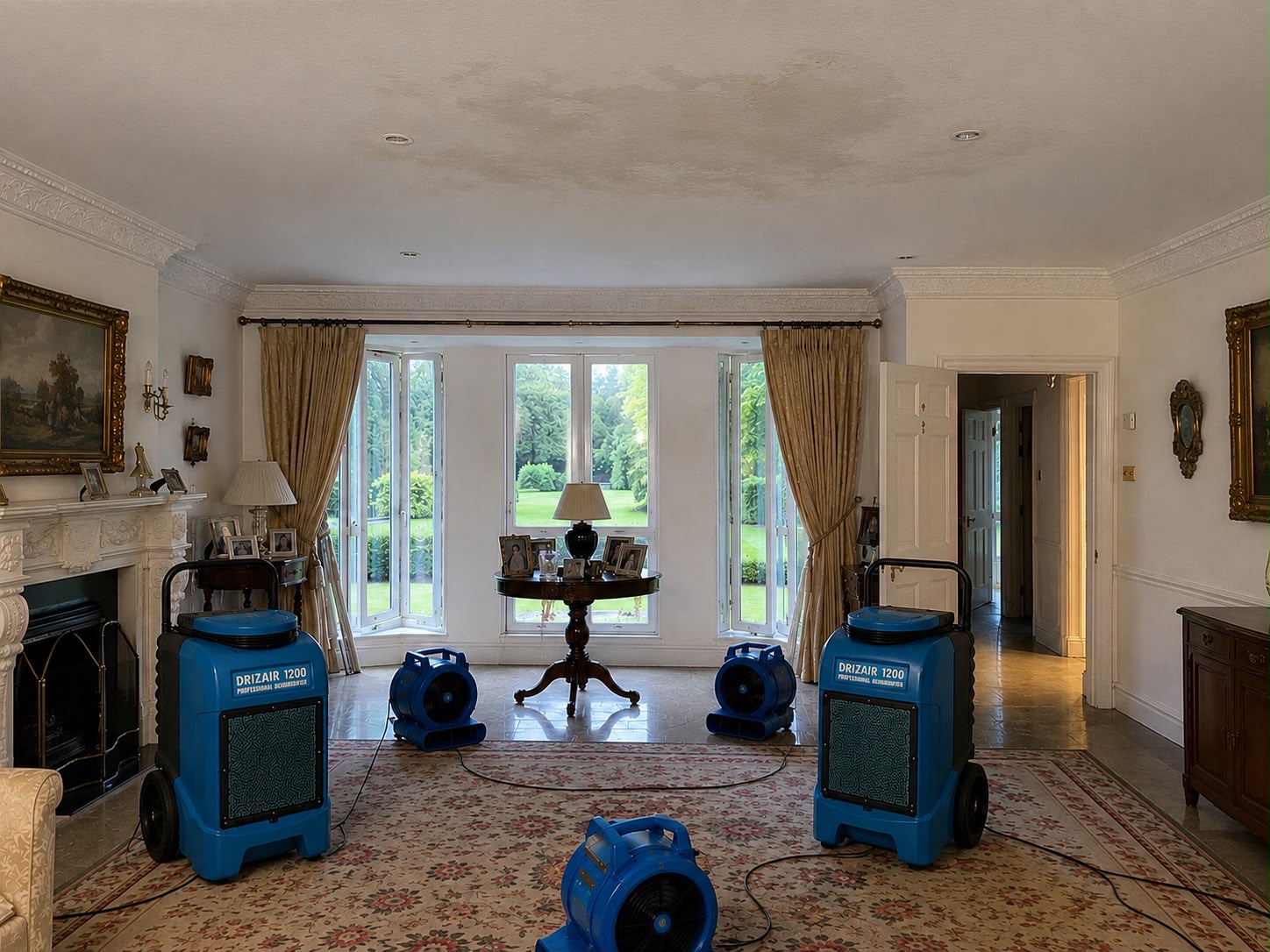

A controlled programme tailored to the property
At initial moisture levels of this magnitude, passive ventilation alone would have been wholly inadequate. Mechanical structural drying was required immediately to prevent further deterioration, mould development, secondary damage and the unnecessary replacement of building materials.
Continuous moisture extraction from the surrounding air.
Accelerated evaporation across saturated ceiling and walls.
Calibrated moisture readings across all affected areas.
Ongoing checks to maintain optimum drying performance.
Electrical supplies were protected, cables managed safely and airflow monitored to prevent stagnant areas where drying efficiency may reduce.

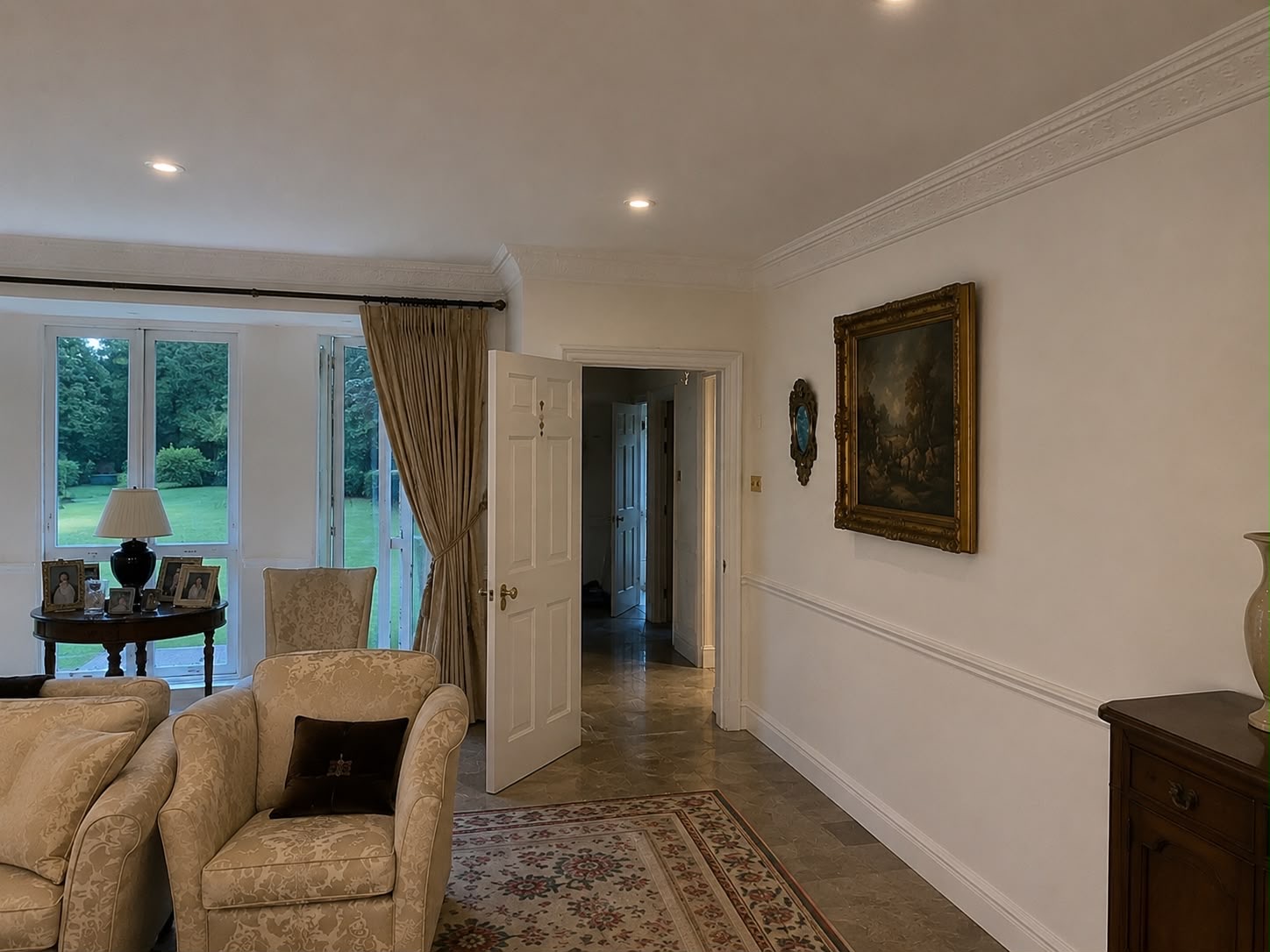

A seamless finish, matching the original character
Once structural drying had been verified, reinstatement began. The damaged ceiling was carefully prepared before repairs were completed to all affected areas. Particular attention was paid to achieving a seamless finish so that no evidence of the previous escape of water remained visible.
- Removal of damaged decorative finishes
- Ceiling preparation
- Localised plaster repairs
- Full skim where required
- Mist coating
- Professional repainting
- Decoration of affected wall areas
- Final quality inspection
The homeowner requested that the existing decorative style be retained throughout the living room. All works were completed to match the original appearance of the property.
Early intervention preserved the property's character
This project highlights the importance of early intervention following the discovery of a concealed escape of water. Although the leak had developed gradually over an extended period, prompt implementation of a controlled structural drying programme prevented more extensive deterioration and allowed the majority of the affected building materials to be successfully retained.
Moisture monitoring throughout the drying process demonstrated a consistent reduction from the initial reading to the final verification, confirming that the drying strategy was effective and that the property had returned to an acceptable moisture content for reinstatement.
The project was completed successfully, with the living room fully restored to its pre-loss condition while preserving the character and high-quality finishes of this substantial country residence.
