· 10 reviewsCase study · Escape of water
Winter Loft Pipe Failure — Bedroom Structural Drying and Restoration
Frozen loft pipe · Collapsed ceiling · Full reinstatement
A family returned home from a winter holiday to discover that a water supply pipe in the loft had failed during freezing weather. Water saturated the loft insulation and migrated through the bedroom ceiling below, causing partial collapse. My HomeDry assessed, dried, monitored and fully reinstated the affected room.
Illustrative service example. Photographs, moisture readings, timings and material details for this project are held in the original site record. Precise figures are not published on the public website; a redacted evidence pack can be shared with a policyholder, insurer or loss adjuster on request.
Executive summary
A family returned home from a winter holiday to discover that a water supply pipe connected to the cold-water storage system in the loft had failed during a period of freezing weather. Because the property was unoccupied, the escape of water continued undetected for some time.
Water saturated the loft insulation before migrating through the ceiling construction into the bedroom below. By the time the loss was discovered, a substantial section of the bedroom ceiling had become waterlogged, part of the plasterboard had failed and moisture had spread into adjoining wall surfaces.
My HomeDry was appointed to assess the damage, establish the extent of moisture migration, undertake controlled structural drying, monitor the affected materials and complete the necessary reinstatement works — from emergency assessment through to ceiling repair, plastering and final redecoration.
The recorded moisture readings reduced from an initial monitoring reading to monitoring readings that reduced steadily before final documentation.
Collapsed ceiling and hidden saturation

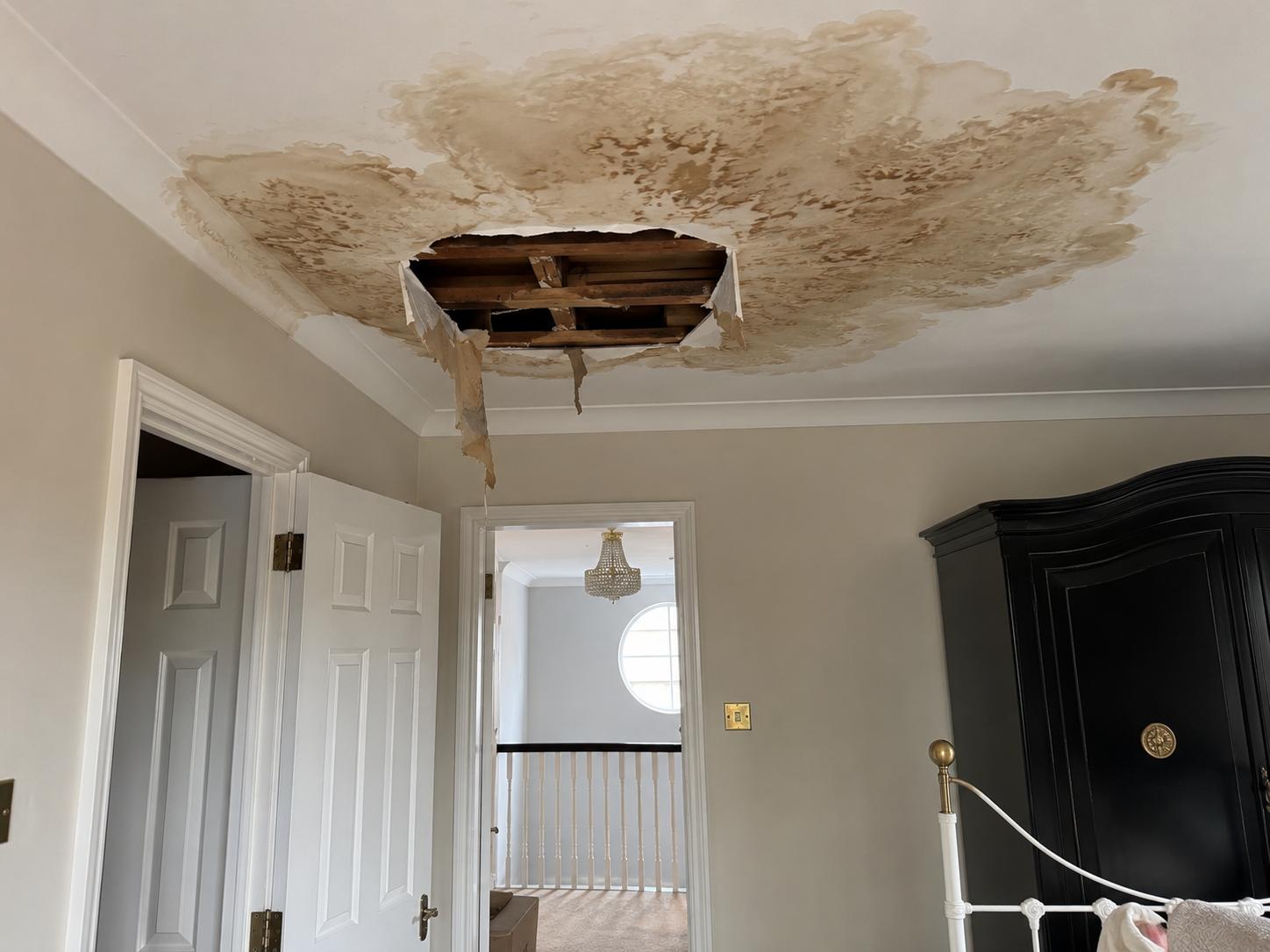

My HomeDry attended to complete a detailed visual and moisture assessment. The bedroom presented with significant water damage concentrated across the ceiling beneath the loft space. A large section of plasterboard had failed, leaving the timber joists and internal void exposed.
The remaining ceiling surface displayed extensive brown staining, softening of the plasterboard and breakdown of the decorative coating. Moisture had travelled laterally from the original point of escape, meaning the visibly collapsed section represented only part of the affected area.
The adjoining walls were also assessed because water from loft-level losses commonly tracks along joists, ceiling edges, fixings and wall junctions before becoming visible. No reinstatement was recommended at this stage — repairing or decorating the room too early could have trapped moisture within the structure and caused subsequent staining, paint failure, mould growth or deterioration of the replacement materials.
- Extensive saturation of the bedroom ceiling
- Partial collapse of the plasterboard lining
- Exposed ceiling joists and loft void
- Water staining beyond the collapsed section
- Elevated moisture within nearby wall surfaces
- Contaminated and saturated loft insulation
- Damage to decorative finishes
- Risk of continued deterioration without controlled drying
Before drying equipment was installed, loose and unstable ceiling material was removed in a controlled manner, and saturated loft insulation within the affected zone was assessed and removed where it could not safely be retained.
Readings taken with a calibrated Protimeter Digital Mini
A moisture survey was completed using a Protimeter Digital Mini in Wood Moisture Equivalent mode. Readings were taken from accessible wall surfaces close to the ceiling, surrounding the main area of damage and at comparison points further away from the loss. Each subsequent visit demonstrated a clear downward trend as moisture was extracted from the affected building materials.

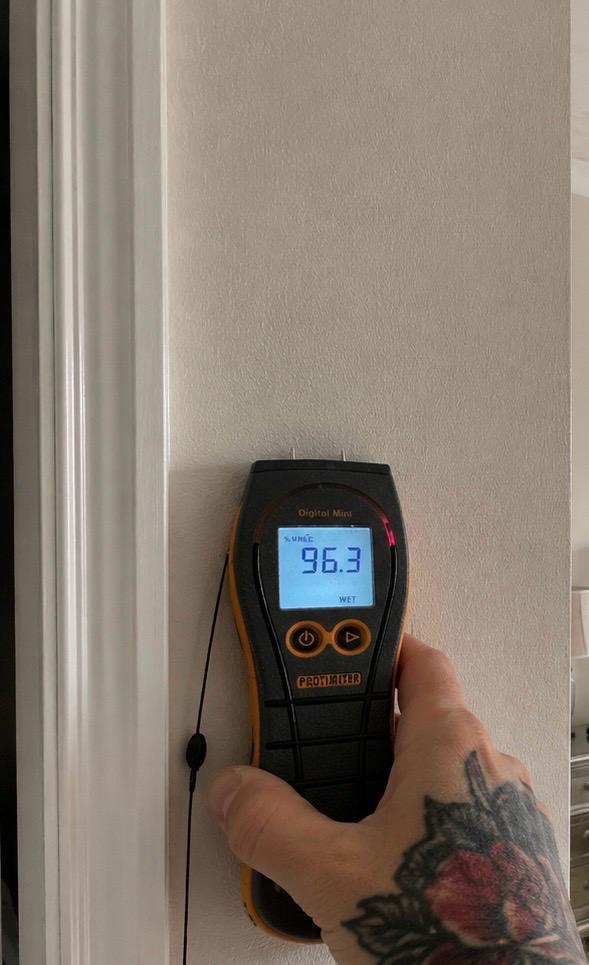

1Initial inspection
Monitoring reading recorded
Severe saturation identified following the loft pipe failure.

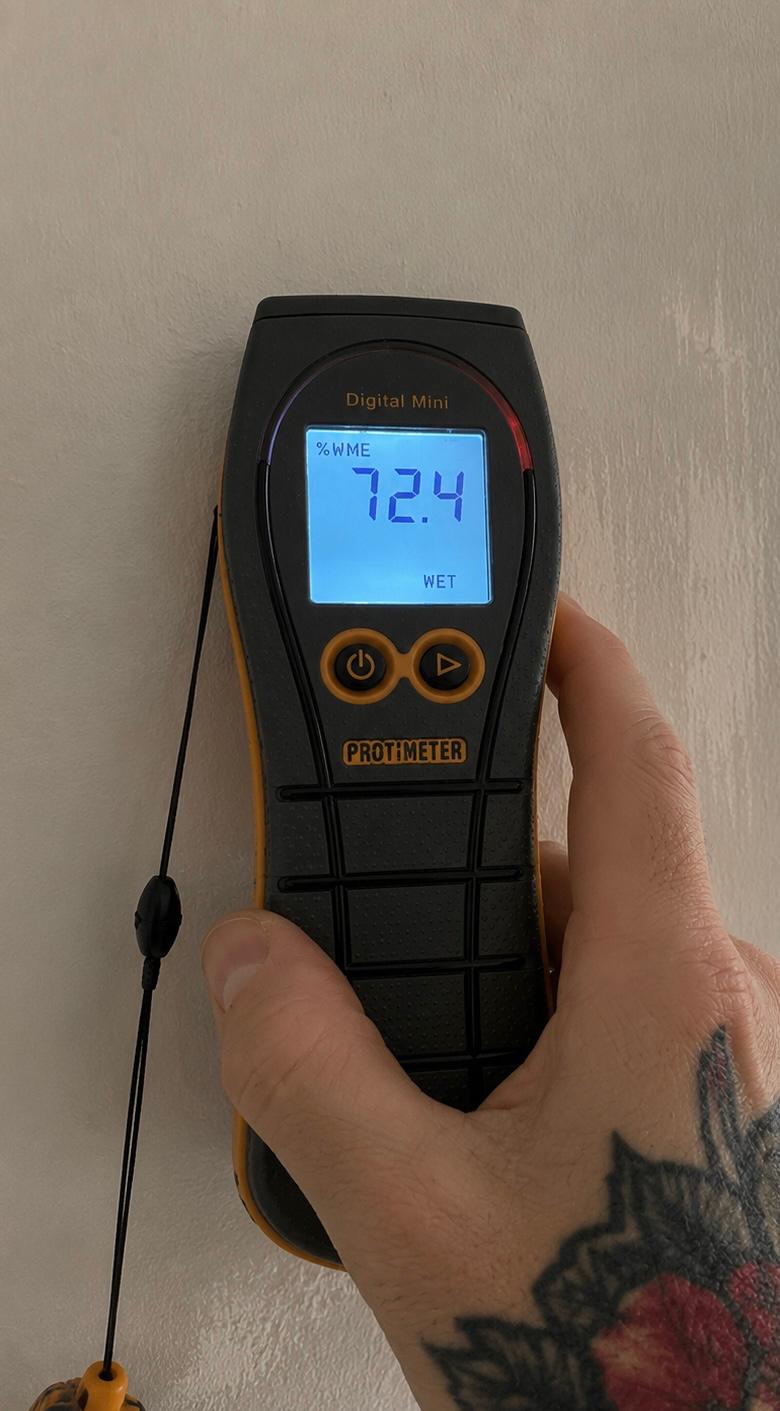

2Monitoring visit
Monitoring reading recorded
Clear reduction achieved — significant residual moisture still present.

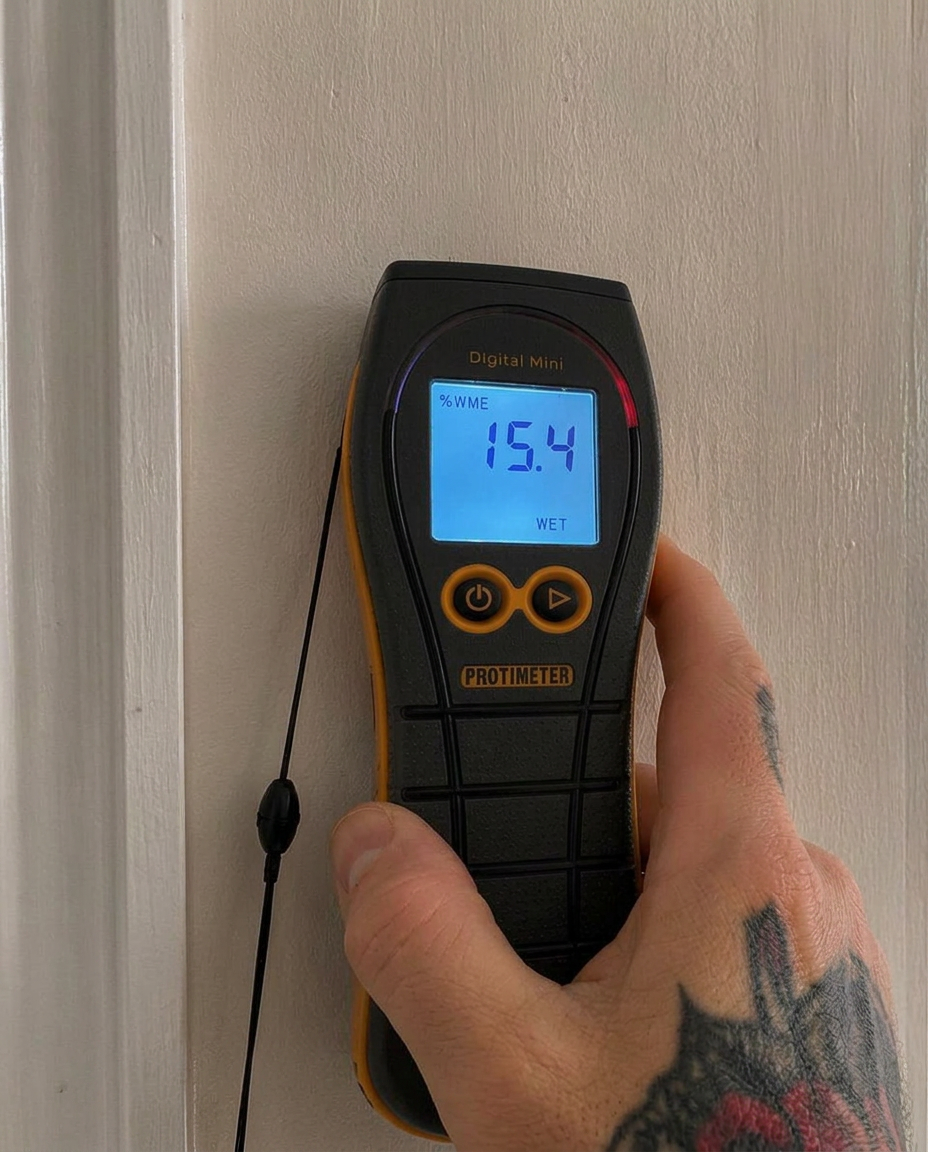

3Final documented
Monitoring reading recorded
Affected area stabilised — ready for verification and reinstatement.
Illustrative service example
Comparative moisture readings were recorded at agreed monitoring points and reduced across the drying programme. Reinstatement proceeded after repeated readings supported the decision. Precise figures for this project are held in the site record and can be shared with the policyholder, insurer or loss adjuster on request.
A controlled drying environment for a loft-origin loss
Due to the severity of the loss, natural ventilation alone would not have provided an adequate or measurable drying process. My HomeDry therefore established a controlled drying environment within the bedroom.

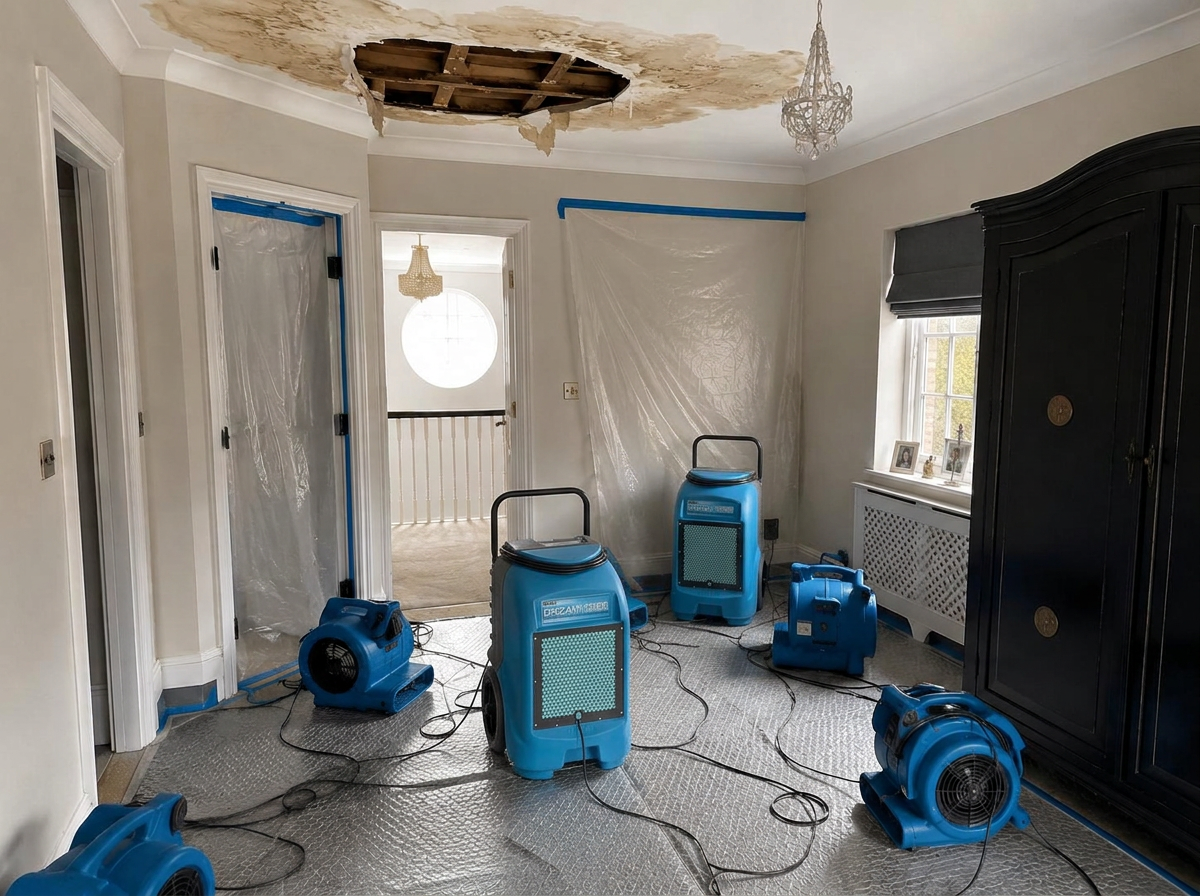

Professional dehumidifiers were installed to remove moisture from the room air, while air movers were positioned to increase airflow across the exposed ceiling structure, remaining plasterboard and affected wall surfaces. The dehumidifiers then collected and removed the evaporated moisture, preventing it from simply circulating or condensing elsewhere in the property.
Because the loss originated in the loft, particular attention was paid to drying the ceiling void and timber members rather than concentrating only on the visible room surfaces. Equipment positions were reviewed at each attendance to avoid stagnant areas and to maintain consistent progress.
Continuous moisture extraction from the room air.
Directed airflow across ceiling void, joists and walls.
Bedroom kept as a controlled drying zone.
Calibrated moisture readings across all affected areas.
Doors and openings were managed so that the equipment concentrated on the affected room rather than attempting to dry the entire property. The family was advised not to switch off, cover or relocate the equipment during the programme.
Ceiling replacement, plastering and full redecoration
Once the drying phase was signed off, the room was prepared for reinstatement. Damaged ceiling edges were cut back to sound plasterboard and timber supports, and the ceiling void was checked to confirm that the pipe repair remained secure and that no further water was entering the structure. Removed insulation was replaced with appropriate material once the surrounding structure was dry.

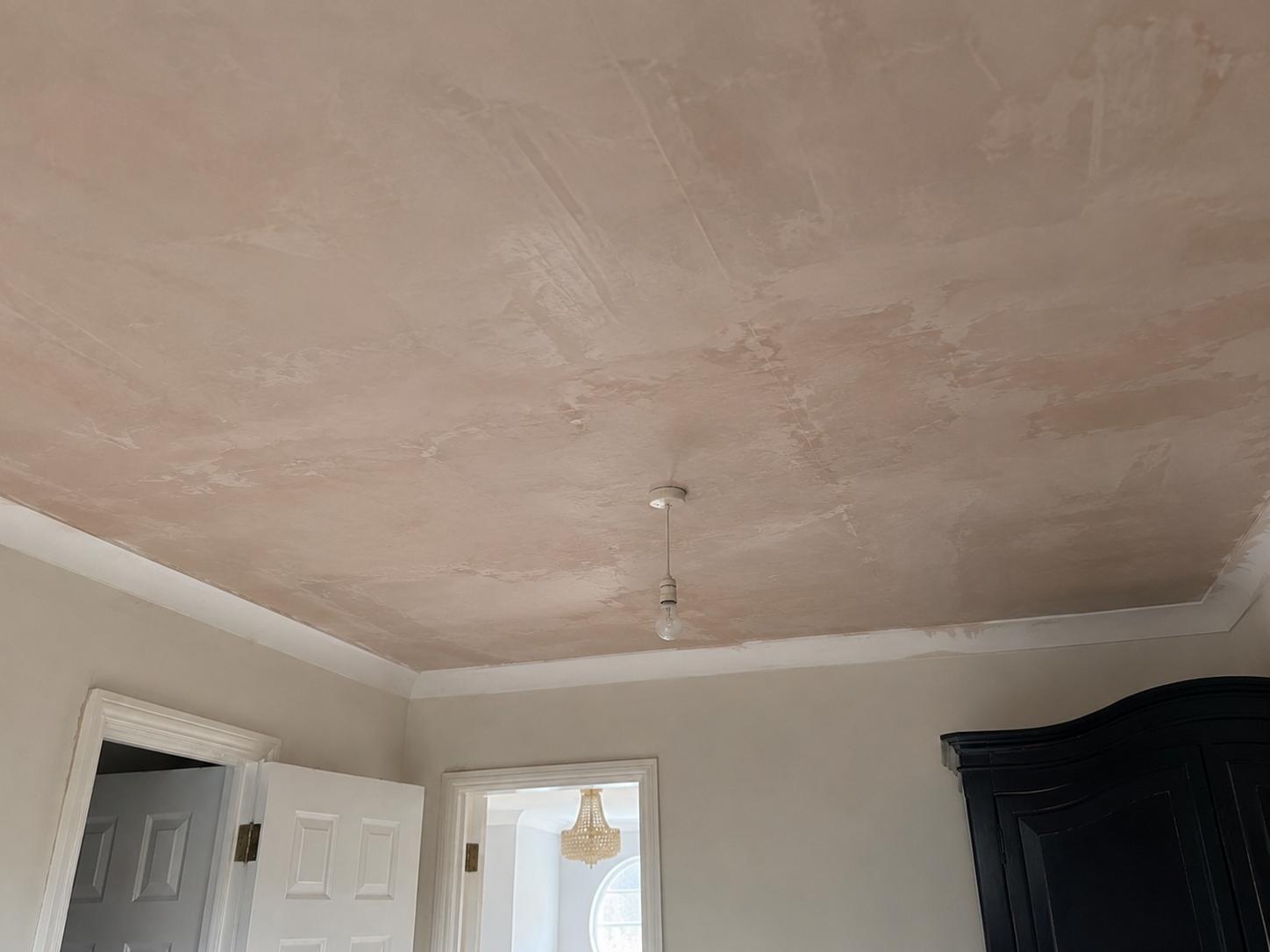

New plasterboard was installed to replace the failed section, securely fixed to the existing joists and integrated with the retained ceiling. The repaired area was then plastered and blended into the surrounding ceiling to create a consistent surface.
The new plaster was allowed to dry naturally before decoration commenced — applying paint too early can trap moisture, cause poor adhesion and lead to peeling or patchy finishes. Once dry, the full ceiling was mist-coated, decorated and finished so that no visible difference remained between the new and retained surfaces.
- Final inspection of the repaired loft pipe
- Inspection of ceiling joists and surrounding timber
- Replacement of damaged insulation where required
- Installation of replacement plasterboard
- Reinforcement and treatment of board joints
- Plastering of the repaired area
- Mist coating on new plaster once dry
- Full ceiling redecoration and final clean
The finished bedroom was restored with a smooth white ceiling, clean wall finishes and no visible evidence of the previous collapse.
Early containment and controlled drying preserved the structure
The extent of the damage was increased because the property was unoccupied when the loft pipe failed. Water was able to migrate through the insulation and ceiling construction before the loss was discovered.
Prompt isolation of the water supply prevented further ingress, while controlled removal of unstable materials provided safe access to the affected structure. The drying programme achieved a clear and consistent reduction in recorded moisture — from an initial monitoring reading to monitoring readings that reduced steadily before final documentation.
The drying process enabled the affected structure to be retained and repaired safely. Following reboarding, plastering and redecoration, the bedroom was restored to its pre-loss appearance. Final status: structural drying completed, damaged ceiling reinstated and bedroom returned to use.
